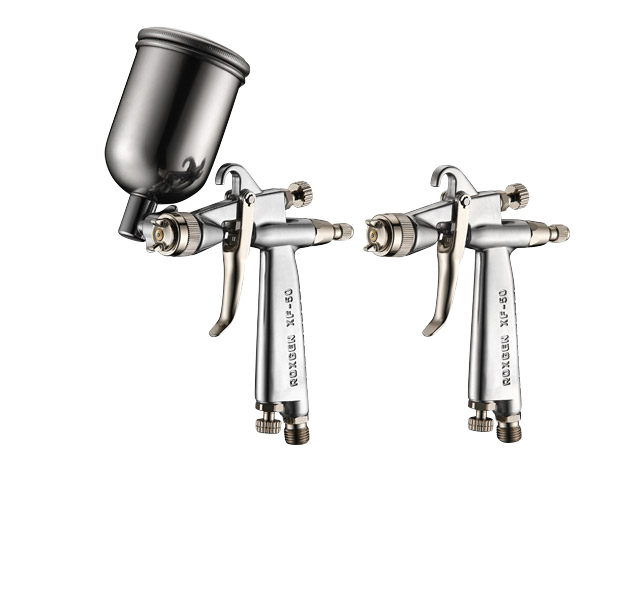

Mini Spray Gun
Product Description

RANOX mini spray gun is used for refinsihing small area. The specially designed air cap increases the air flow, creating soft, and spot free round or fan pattern. It can be applied to small area spraying, car repair, aircraft repair, decoration, toys, leather, handicrafts, metal products ... and so on.

Two shapes of spray, choose appropriate products according to requirement: 1. capsule shape (F) 2. circular shape (R). Special air cap design, increases smooth air-flow, and pattern sharp stability, less paint rebounds, prevention of nozzle clogging.

FEATURES

  • SPRAY DISTANCE: 100~150mm
  • PAINT VISCOSITY: 16sec/Ford#4
  • FLUID CONNECTOR: 1/4”PF
  • AIR CONNECTOR: 1/4”PF
Product Introduction
ModelType of FeedNozzle Orifice Ø Mm (In)Air CapAtomizing Air Pressure Mpa(Bar)Fluid Output Ml/MinAir Consumption L/Min (Cfm)Pattern Width Mm(In)Weight G(Lbs)
XF-50-G04 GRAVITY 0.4(0.016) 04F 0.24(2.5/36) 20 85(3.0) 50(2.0) 210(0.46)
XF-50-G06 GRAVITY 0.6(0.024) 06F 0.24(2.5/36) 30 85(3.0) 70(2.8) 210(0.46)
XF-50-G10 GRAVITY 1.0(0.039) 10F 0.24(2.5/36(0.9) 70 85(3.0) 110(4.3) 210(0.46)
