Automatic Paint Guns
Product Description
RANOX High Performance Auto Paint Spray Gun atomizes fluid, distributes fluids, and has a high adhesion rate. Stable coating quality has always been RANOX's goal. The medium pressure auto paint spray gun is suitable for automatic spraying equipment.
There are various nozzle calibers available for selection according to customer requirements. Suitable for many applications, such as: computer shell, mobile phone shell, cosmetic container shell, furniture, hand tools, textile, glass, die-casting, building materials, hardware and so on.
Fine Aerosol Particles, even atomization with high adhesion.
Stable painting quality
FEATURES

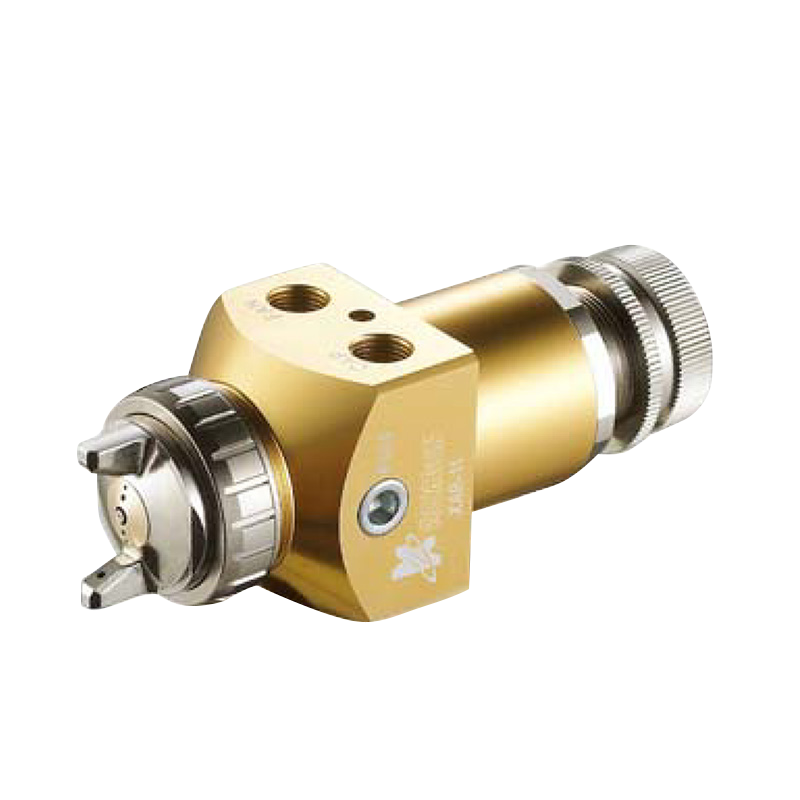

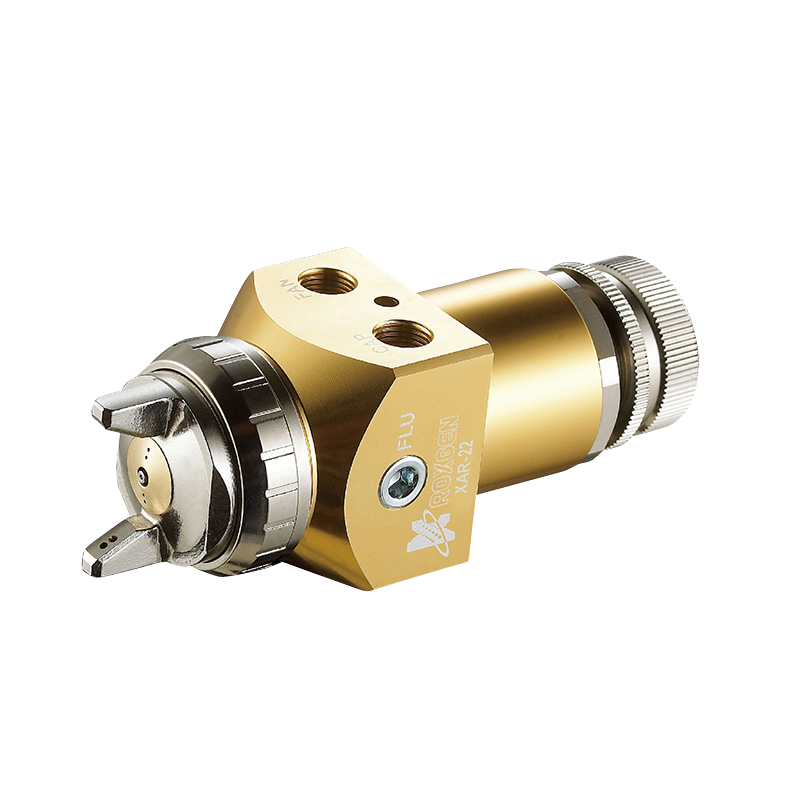

XAR-11 / XAR-22 SPRAY DISTANCE: 200mm / 250mm
PAINT VISCOSITY: 16sec/Ford#4
FLUID CONNECTOR: 1/8”PF
CAP/CYL AIR CONNECTOR: 1/8”PF
Product Introduction
ModelType of FeedNozzle Orifice Ø Mm (In)Air CapAtomizing Air Pressure Mpa(Bar)Fluid Output Ml/MinAir Consumption L/Min (Cfm)Pattern Width Mm(In)Weight G(Lbs)
CAPFAN
XAR-11-08P PRESSURE 0.8(0.031) E2P 0.26(2.6/38) 0.22(2.2/31) 150 270(9.5) 190(7.5) 340(0.75)
XAR-22-12P PRESSURE 1.0(0.047) G2P 0.24(2.4/37) 0.27(2.6/38) 500 530(18.7) 400(15.7) 365(0.80)
XAR-22L-08S PRESSURE 0.8(0.031) LV4 0.14(1.4/20) 0.16(1.6/23) 50 230(8.1) 110(4.3) 380(0.84)
