ROUND PATTERN AUTOMATIC SPRAY GUN

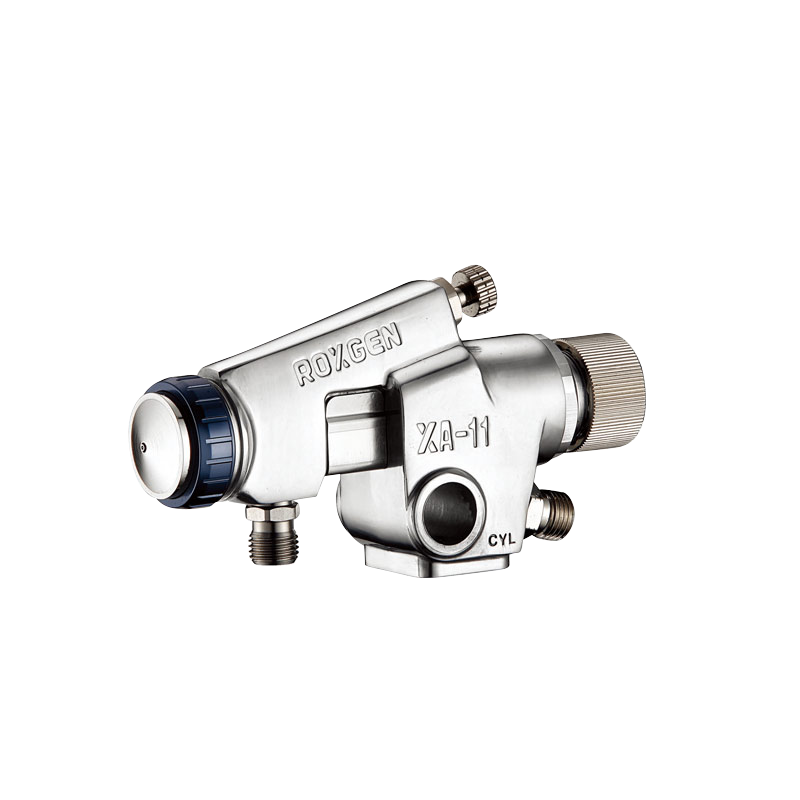

Round Pattern Automatic Spray Gun
Product Description
RANOX round pattern automatic spray guns can be mounted on robotic arms or automatic painting machines. Suitable for applying adhesive glue, spot marking spray, lubricating oil, release agent… and so on.
Ranox has more than 30 years of experience in the production of spray guns. The production process standards are strict. Ranox spray guns have been well received by customers in many countries. All products are produced in Taiwan. We don’t have any other plant outside of Taiwan.
Whether you are a wholesaler, an OEM buyer, you are welcome to contact us as long as you have a need for a spray gun!
FEATURES
SPRAY DISTANCE: 200mm
PAINT VISCOSITY: 16sec/Ford#4
FLUID CONNECTOR: 1/4PF
CAP/CYL AIR CONNECTOR: 1/4PF
Inquiry
Inquiry
Product Introduction
ModelType of FeedNozzle Orifice Ø Mm (In)Air CapAtomizing Air Pressure Mpa(Bar)Fluid Output Ml/MinAir Consumption L/Min (Cfm)Pattern Width Mm(In)Weight G(Lbs)
XA-11R-05P PRESSURE 0.5(0.019) R 0.29(3.0/43) 20~70 40(1.4) 35(1.1) 410(0.90)
XA-11R-05P PRESSURE 0.8(0.031) R 0.29(3.0/43) 55~110 70(2.4) 50(1.9) 410(0.90)
