HVLP Spray Gun
Product Description

Ranox's Low air pressure and air consumption for less paint rebound and strong adhesion. Reduce environmental pollution. Balanced design with ergonomics for better grip and less user hand fatigue. Precision machined gun body, fluid nozzle, fluid needle and air cap. Durability. Superior atomization and uniform pattern.

With more than 30 years of experience in the manufacturing Environmental Spray Gun with High Volume Low Pressure, Ranox spray guns have been widely used worldwide. All products are made in Taiwan. We don’t have any other plant outside of Taiwan.

Whether you are wholesalers, OEM, as long as there is a demand for the central pneumatic HVLP spray gun. Please do not hesitate to contact us.

FEATURES

  • SPRAY DISTANCE: 200mm
  • PAINT VISCOSITY: 16sec/Ford#4
  • FLUID CONNECTOR: M16×1.5
  • AIR CONNECTOR: 1/4PF
Product Introduction
Hvlp ModelType of FeedNozzle Orifice Ø Mm (In)Air CapAtomizing Air Pressure Mpa(Bar)Fluid Output Ml/MinAir Consumption L/Min (Cfm)Pattern Width Mm(In)Weight G(Lbs)

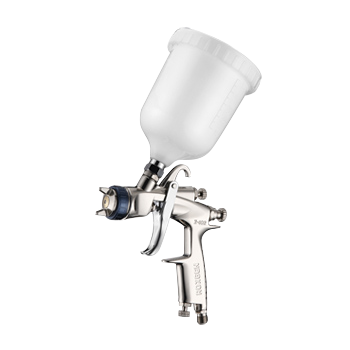

X-402L-14G CENTRAL GRAVITY 1.4(0.055) LV4 0.11(1.1) 130 270(9.5) 290(11.4) 370(0.81)
X-402L-16G CENTRAL GRAVITY 1.6(0.063) LV4 0.11(1.1) 150 270(9.5) 300(11.8) 370(0.81)
