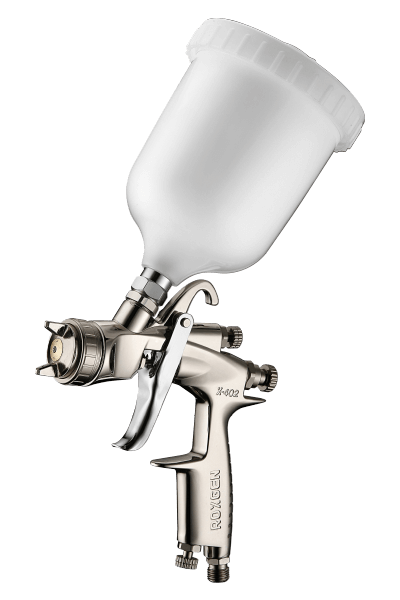

Medium Air Pressure Spray Gun

Medium Pressure Gravity Feed Spray Gun
Product Description

Ranox's central pneumatic spray gun has a balanced design with ergonomics for better grip and less user hand fatigue. Precision machined gun body, fluid nozzle, fluid needle and air cap. Durability. Superior atomization and uniform pattern. High transfer efficiency, fast working speed.

* X-402 Spray Distance: 250mm  *Paint viscosity: 16sec/Ford#4
* Fluid connector: M16x1.5 ; Air connector: 1/4PF
AIR SPRAY GUN INDUSTRY APPLICATION
Upholstery & Building materials spray
Automation equipment spray
Aerospace Technology spray
Furniture manufacturing spray
Car, yacht repair spra
Industry spray
Artistic creation spray
Electronic spray
Computer shell, mobile phone shell, cosmetic container shell spray
Model, ceramic glaze painting spray
FEATURES
SPRAY DISTANCE: 250mm
PAINT VISCOSITY: 16sec/Ford#4
FLUID CONNECTOR: M16×1.5
AIR CONNECTOR: 1/4PF
Inquiry
Inquiry
Product Introduction

specification

ModelType of FeedNozzle Orifice Ø Mm (In)Air CapAtomizing Air Pressure Mpa(Bar)Fluid Output Ml/MinAir Consumption L/Min (Cfm)Pattern Width Mm(In)Weight G(Lbs)
X-402-12G CENTRAL GRAVITY 1.2(0.047) LV2 0.29(3.0) 160 370(13.1) 250(9.8) 370(0.81)
X-402-13G CENTRAL GRAVITY 1.3(0.051) LV2 0.29(3.0) 200 370(13.1) 300(11.8) 370(0.81)
X-402-14G CENTRAL GRAVITY 1.4(0.055) LV2 0.29(3.0) 265 370(13.1) 320(12.6) 370(0.81)
X-402-16G CENTRAL GRAVITY 1.6(0.063) LV2 0.29(3.0) 310 370(13.1) 340(13.4) 370(0.81)
X-402-18G CENTRAL GRAVITY 1.8(0.071) LV1 0.29(3.0) 400 380(13.4) 320(12.6) 370(0.81)
X-402-25G CENTRAL GRAVITY 2.5(0.098) W1 0.29(3.0) 580 360(12.7) 340(13.4) 370(0.81)
