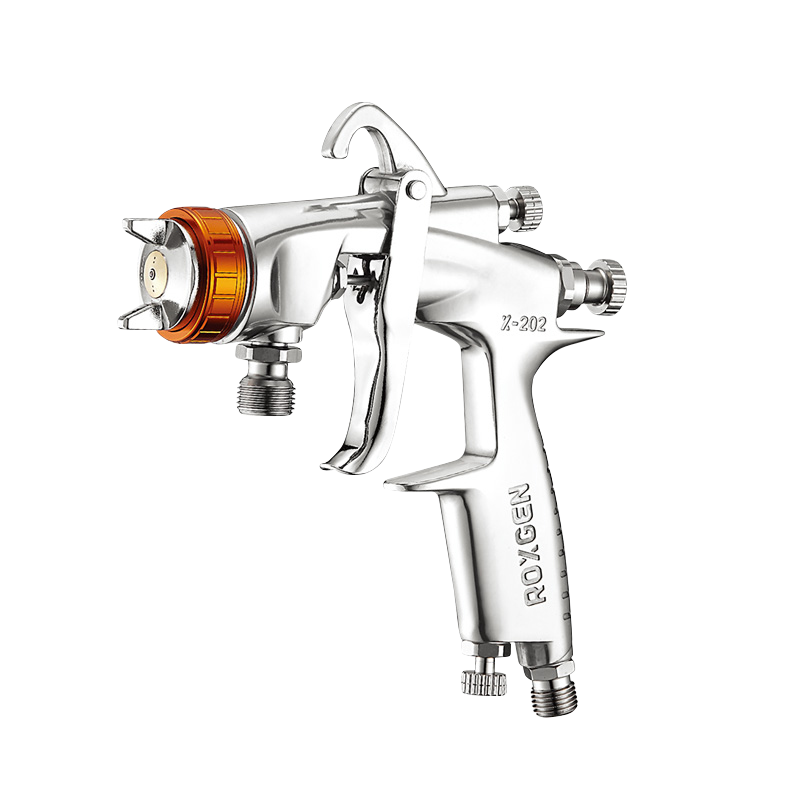

Ceramic Spray Gun
Product Description

RANOX's Air Ceramic Spray Gun is nozzle and needle are made of high-quality stainless steel with heat-treatment. The ideal spraying for ceramic paint. it is suitable for high wear coatings.

The ceramic spray gun is designed to evenly apply ceramic coatings onto surfaces using compressed air. The gun features a nozzle that atomizes the coating material into a fine mist, which is then sprayed onto the surface. The compressed air helps to propel the mist and ensure that it is evenly distributed across the surface being coated.

High hardness ceramic spray guns can be used to wash porcelain, glaze, paint material characteristics of easy wear and tear.

Ranox has more than 30 years of experience in the production of spray guns. You are welcome to contact us as long as you have a need for a spray gun!

FEATURES

  • SPRAY DISTANCE: 250mm
  • PAINT VISCOSITY: 16sec/Ford#4
  • FLUID CONNECTOR: 3/8PF
  • AIR CONNECTOR: 1/4PF
Product Introduction
ModelNozzle Orifice Ø Mm (In)Air CapAtomizing Air Pressure Mpa(Bar)Fluid Output Ml/MinAir Consumption L/Min (Cfm)Pattern Width Mm(In)Weight G(Lbs)
X-202-12H 1.2(0.047) G2P 0.29(3.0/4.3) 500 560(19.8) 400(15.7) 370(0.81)
X-202-13H 1.3(0.051) K2 0.29(3.0/4.3) 220 330(11.7) 250(9.8) 370(0.81)
X-202-14H 1.4(0.059) K2 0.29(3.0/4.3) 230 330(11.7) 270(10.6) 370(0.81)
X-202-15H 1.5(0.059) J2 0.29(3.0/4.3) 240 330(11.7) 290(11.4) 370(0.81)
X-202-18H 1.8(0.071) J2 0.29(3.0/4.3) 290 330(11.7) 340(13.4) 370(0.81)
X-202-20H 2.0(0.079) R2 0.29(3.0/4.3) 350 360(12.7) 290(11.4) 370(0.81)
X-202-25H 2.5(0.098) W1 0.29(3.0/4.3) 440 360(12.7) 280(11.0) 370(0.81)
