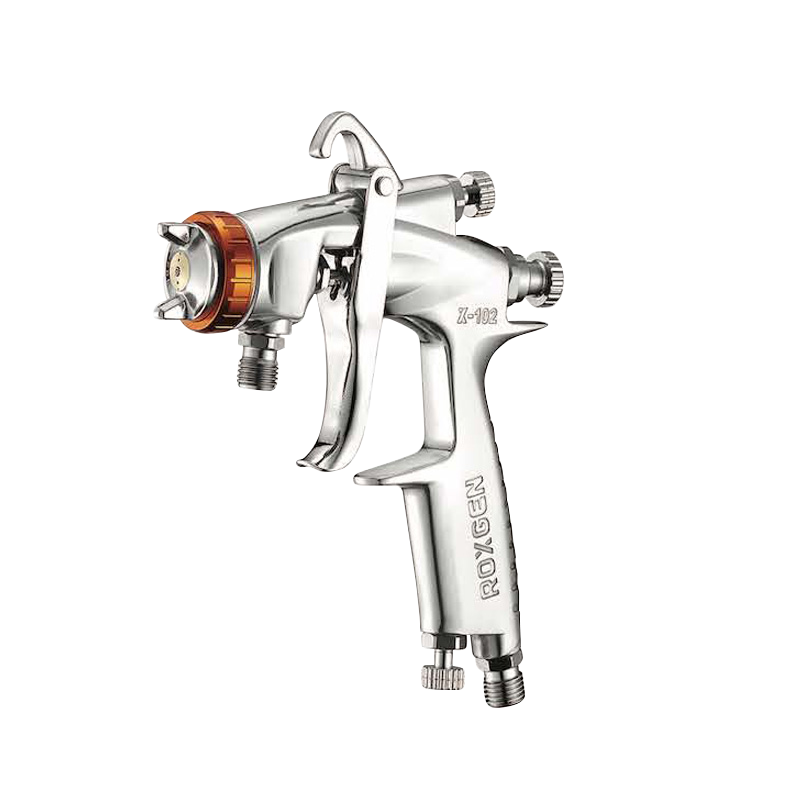

Ceramic Air Spray Gun

Ceramic Spray Gun
Product Description

RANOX wear resistant ceramic spray gun features high hardness nozzles and needles are made of stainless steel. After special processing to increase the hardness of the nozzle and thimble, it is suitable for high wear coatings.

High hardness ceramic spray guns can be used to wash porcelain, glaze, paint material characteristics of easy wear and tear.

Ranox has more than 30 years of experience in the production of spray guns. The production process standards are strict. Ranox spray guns have been well received by customers in many countries. All products are produced in Taiwan. You are welcome to contact us as long as you have a need for a spray gun!

FEATURES

  • SPRAY DISTANCE: 200mm
  • PAINT VISCOSITY: 16sec/Ford#4
  • FLUID CONNECTOR: 1/4PF
  • AIR CONNECTOR: 1/4PF
Inquiry
Inquiry
Product Introduction
ModelNozzle Orifice Ø Mm (In)Air CapAtomizing Air Pressure Mpa(Bar)Fluid Output Ml/MinAir Consumption L/Min (Cfm)Pattern Width Mm(In)Weight G(Lbs)
X-102-08H 0.8(0.031) E2P 0.29(3.0/4.3) 150 270(9.5) 190(7.5) 325(0.71)
X-102-10H 1.0(0.039) E2P 0.29(3.0/4.3) 200 270(9.5) 220(8.7) 325(0.71)
X-102-13H 1.3(0.051) E2P      H2
H4 		 0.24(2.5/3.6) 200 220(7.8) 210(8.3) 325(0.71)
X-102-15H 1.5(0.059)

E2P
H2
H4

 0.24(2.5/3.6) 250 220(7.8) 240(9.4) 325(0.71)
X-102-18H 1.8(0.071) N1 0.24(2.5/3.6) 210 170(6.0) 170(6.7) 325(0.71)
