Automatic Paint Guns

Automatic Paint Guns
Product Description

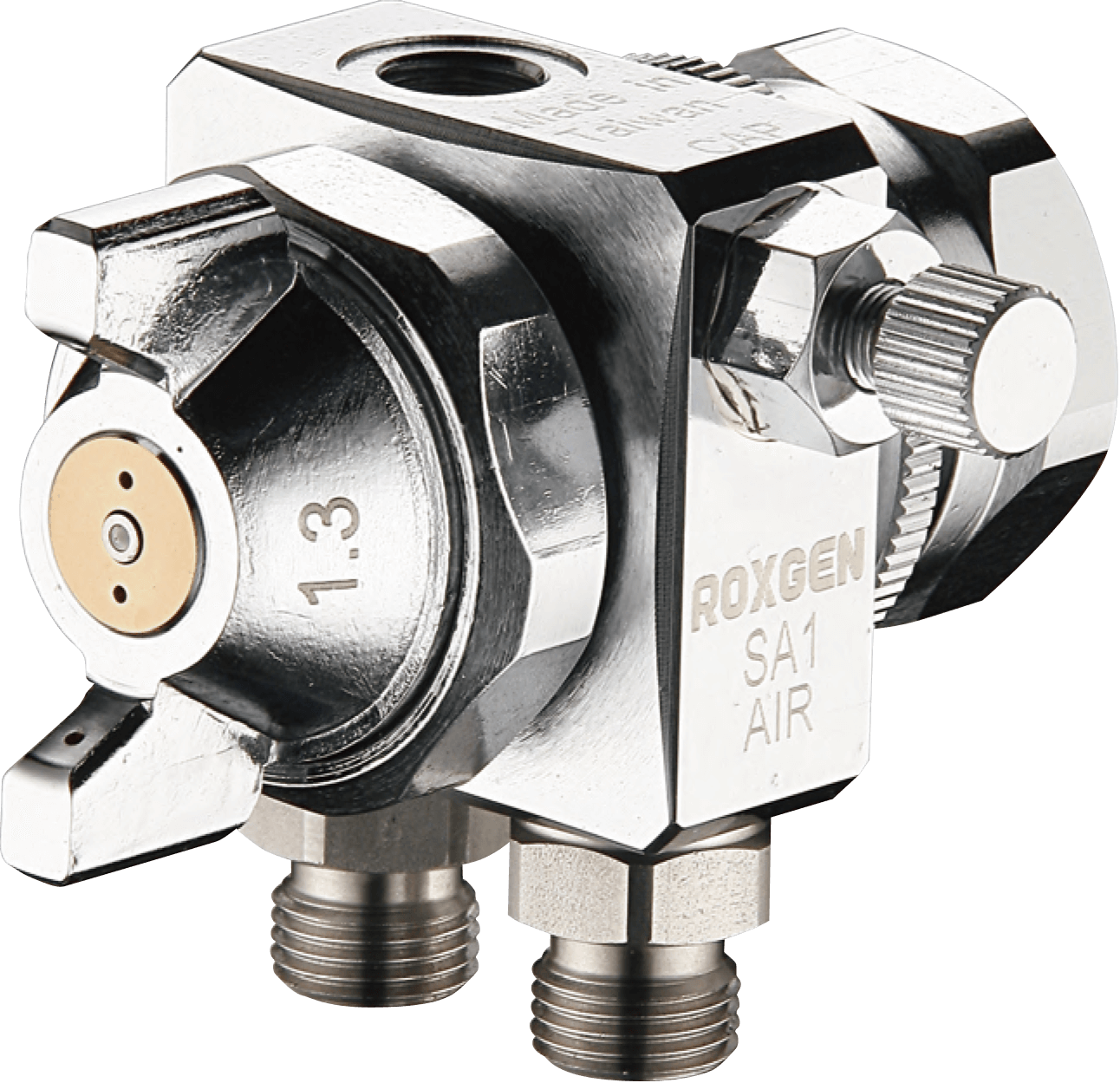

We provide high quality Compact Automatic Spray Gun with reasonable price.

The gun body with precise concentricity tolerance, fits completely to fluid nozzle and needle made by high quality material, to improve durable spray gun and reduce the wear (abrasion) of spare parts.

High air transfer efficiency. Uniform coating and pattern sharp stability. SA-1 SA-2 SA-2W is easy for operation and set-up.

FEATURES

  • SPRAY DISTANCE: 200~300mm
  • PAINT VISCOSITY: 16sec/Ford#4
  • FLUID CONNECTOR: 1/8PF
  • AIR/CYL AIR CONNECTOR: 1/8PF

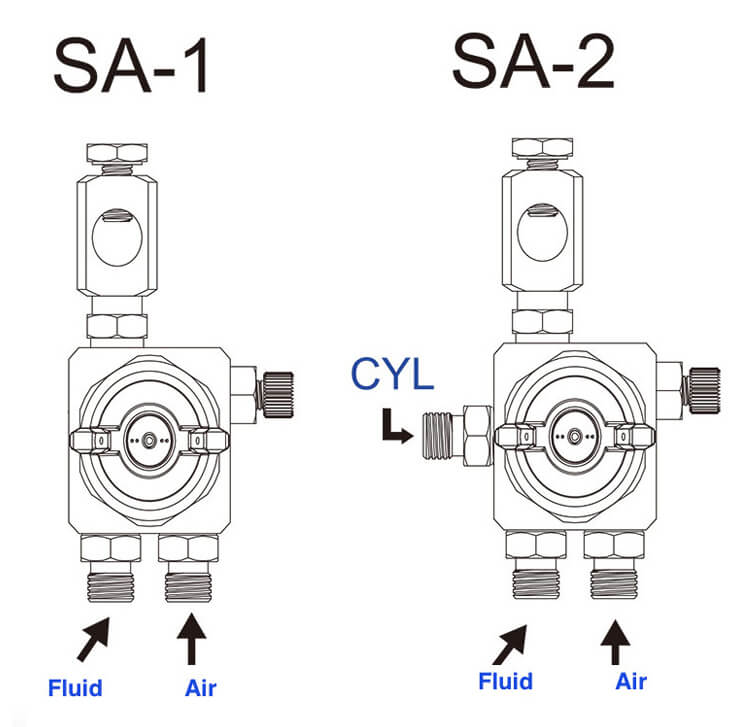

proimages/product/SA-1SA-2-linedraft.jpg
Inquiry
Inquiry
Product Introduction
ModelType of FeedNozzle Orifice Ø Mm (In)Air CapAtomizing Air Pressure Mpa(Bar)Fluid Output Ml/MinAir Consumption L/Min (Cfm)Pattern Width Mm(In)Weight G(Lbs)
SA1-05P PRESSURE 0.5(0.020) 0.5 0.29(3.0/43) 60 60(2.1) 200(7.9) 280(0.62)
SA1-10P PRESSURE 1.0(0.039) 10 0.29(3.0/43) 250 80(2.8) 250(9.8) 280(0.62)
SA1-13P PRESSURE 1.3(0.051) 13 0.29(3.0/43) 360 100(3.5) 350(13.8) 280(0.62)
SA1-20P PRESSURE 2.0(0.079) 20 0.29(3.0/43) 600 140(4.9) 400(15.7) 280(0.62)
SA2-05P PRESSURE 0.5(0.020) 0.5 0.29(3.0/43) 60 60(2.1) 200(7.9) 330(0.66)
SA2-10P PRESSURE 1.0(0.039) 10 0.29(3.0/43) 250 80(2.8) 250(9.8) 330(0.66)
SA2-13P PRESSURE 1.3(0.051) 13 0.29(3.0/43) 360 100(3.5) 350(13.8) 300(0.66)
SA2-20P PRESSURE 1.2(0.047) G2P 0.29(3.0/43) 500 530(18.7) 400(15.7) 440(0.97)
SA-2W PRESSURE 0.5(0.020) W 0.13(1.3/18) 60 60(2.1) 200(7.9) SAW300(0.66)
SA-2W PRESSURE 1.0(0.039) W 0.15(1.5/21) 250 80(2.8) 250(9.8) SAW300(0.66)
