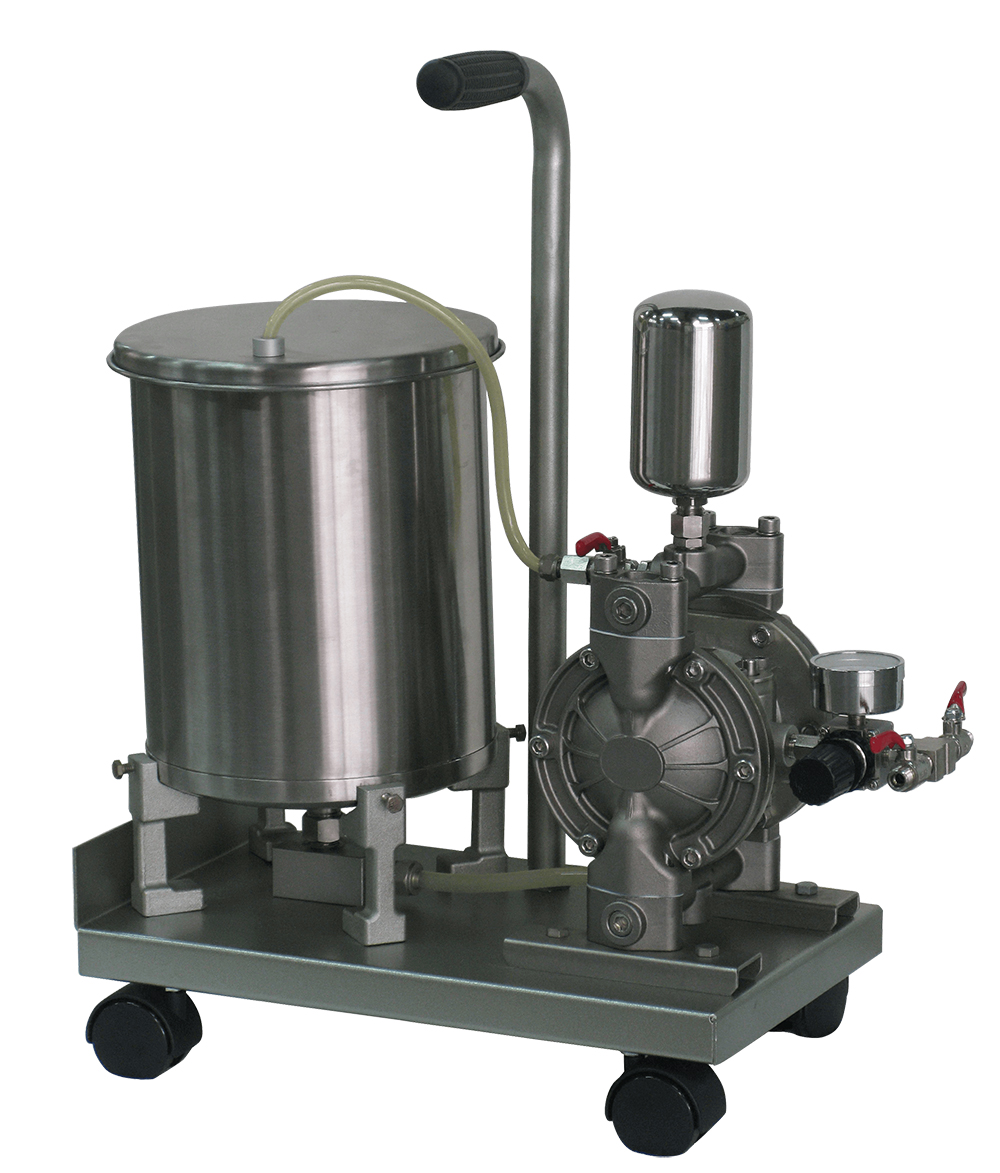

AIR DIAPHRAGM PUMP
Product Introduction
specification
| Pressure Ratio | 1:1 |
|---|---|
| Transmitting Capacity | 5L/min(0.4kg/cm²) |
| 7.5L/min(1kg/cm²) | |
| 10.5L/min(2kg/cm²) | |
| Used Air Pressure | 1~5kg/cm |
| Max. Painting Pressure | 5kg/cm |
| Max. Pump Speed | 160times/Min (5kg/cm²) |
| Min. Pump Speed | 80times/min(0.4kg/cm²) |
| Paint Tank | 4L or 8L |
| Paint MaterialL | SUS-304 |
| Description Of Goods | Material |
| Pump | Aluminum |
| Axle Center | Stainless Steel |
| Agitating Blade | Stainless Steel |
| Paint Tank | Stainless Steel |
| Product(Mm) | 513×250×600 |
