Air Diaphragm Pump
Product Description

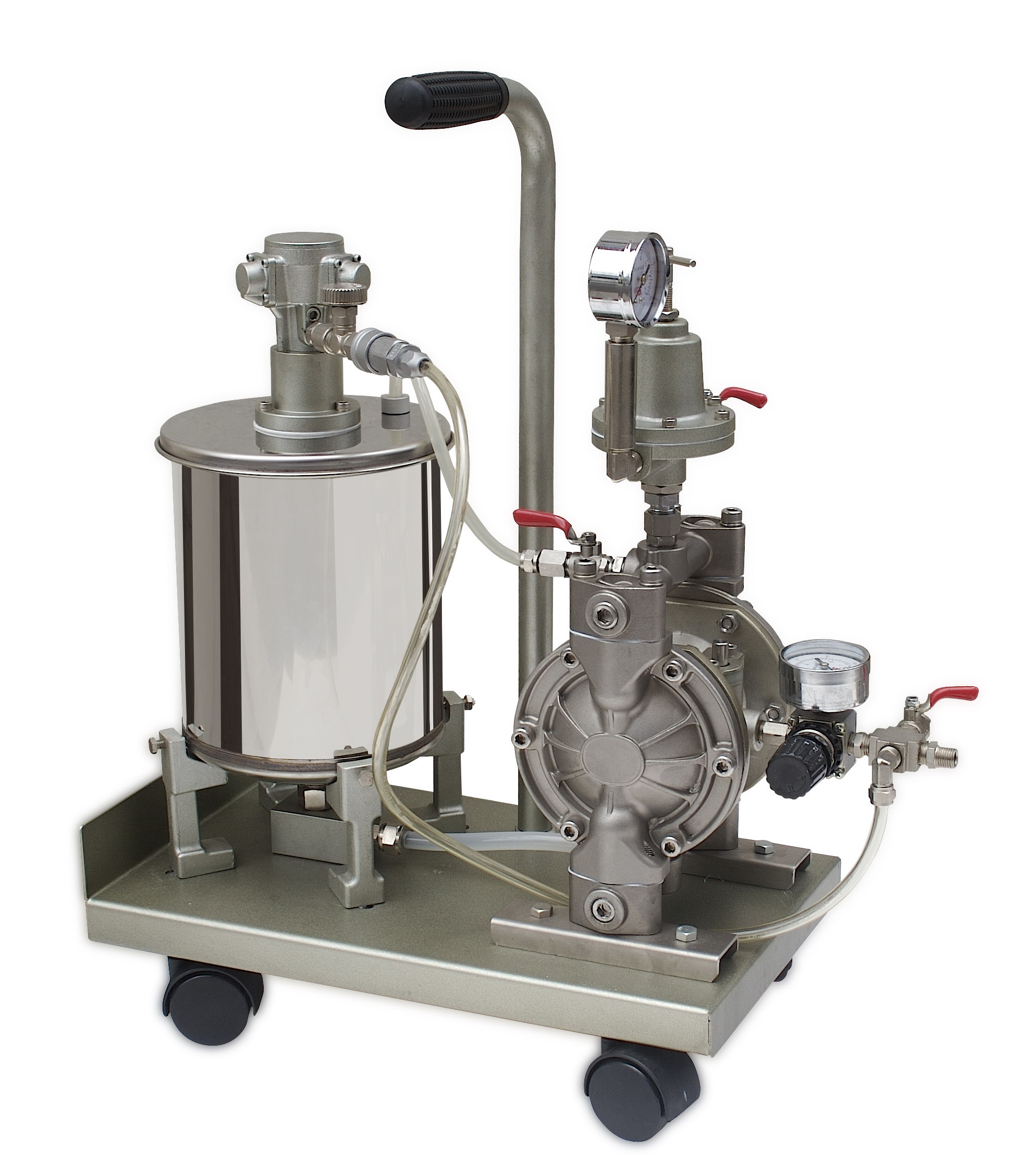

Double diaphragm pumps with Pressure reducing valve, Double diaphragm pumps with stainless steel paint container.
We are professional manufacturer of HVLP Spray Gun, Painting Spray Guns, Painting Gun and Electrical Air Mixer.

Product Introduction

specification

Pressure Ratio 1:1
Transmitting Capacity 5L/min(0.4kg/cm²)
7.5L/min(1kg/cm²)
10.5L/min(2kg/cm²)
Used Air Pressure 1~5kg/cm²
Max. Painting Pressure 5kg/cm²
Max. Pump Speed 160times/Min (5kg/cm²)
Min. Pump Speed 80times/min(0.4kg/cm²)
Paint Tank 4L or 8L
Paint MaterialL SUS-304
Description Of Goods Material
Pump Aluminum
Axle Center Stainless Steel
Agitating Blade Stainless Steel
Paint Tank Stainless Steel

Air Agitator

Description Of Goods AM-01 AIR MOTOR(S)
Pump 1/12
Axle Center 11.5 S.C.F.M.
Vibration 12m/S2
Free Speed ≒1:1→5200 R.P.M.
db 88
Product(Mm) 513×250×600
