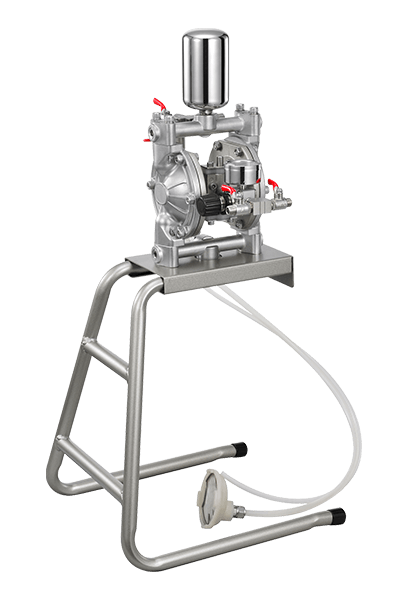

AIR DIAPHRAGM PUMP
Product Introduction
specification
| Fluid Inlet & Outlet Dimension | 3/8”PT |
|---|---|
| Air Inlet & Outlet Dimension | 1/4”PT |
| Pressure Ratio | 1:1 |
| Transmitting Capacity | 5L/min 0.4kg/cm² |
| 7.5L/min 1.0kg/ cm² | |
| 10.5L/min 2.0kg/ cm² | |
| Used Air Pressure | 1-5kg/ cm² |
| Max. Painting Pressure | 5kg/ cm² |
| Max. Pump Speed | 160 times/ min(5kg/ cm²) |
| Min. Pump Speed | 80 times/ min (0.4kg/ cm²) |
| Max. Fluid Temprature | 45°c |
| Body Material Of Construction | Stainless Steel |
